Due Emme (2M) PS/B SPORTELLO 50 mm PA6 Belt Buckle
BUCKLES
SKU · PS/B SPORTELLO
About this item
PS/B SPORTELLO is a Due Emme buckle with a cover for a nominal 50 mm belt assembly. The catalogue specifies PA6; the manufacturer website lists the version as PSB/50 SPORTELLO in its safety buckle group.
Selecting the assembly

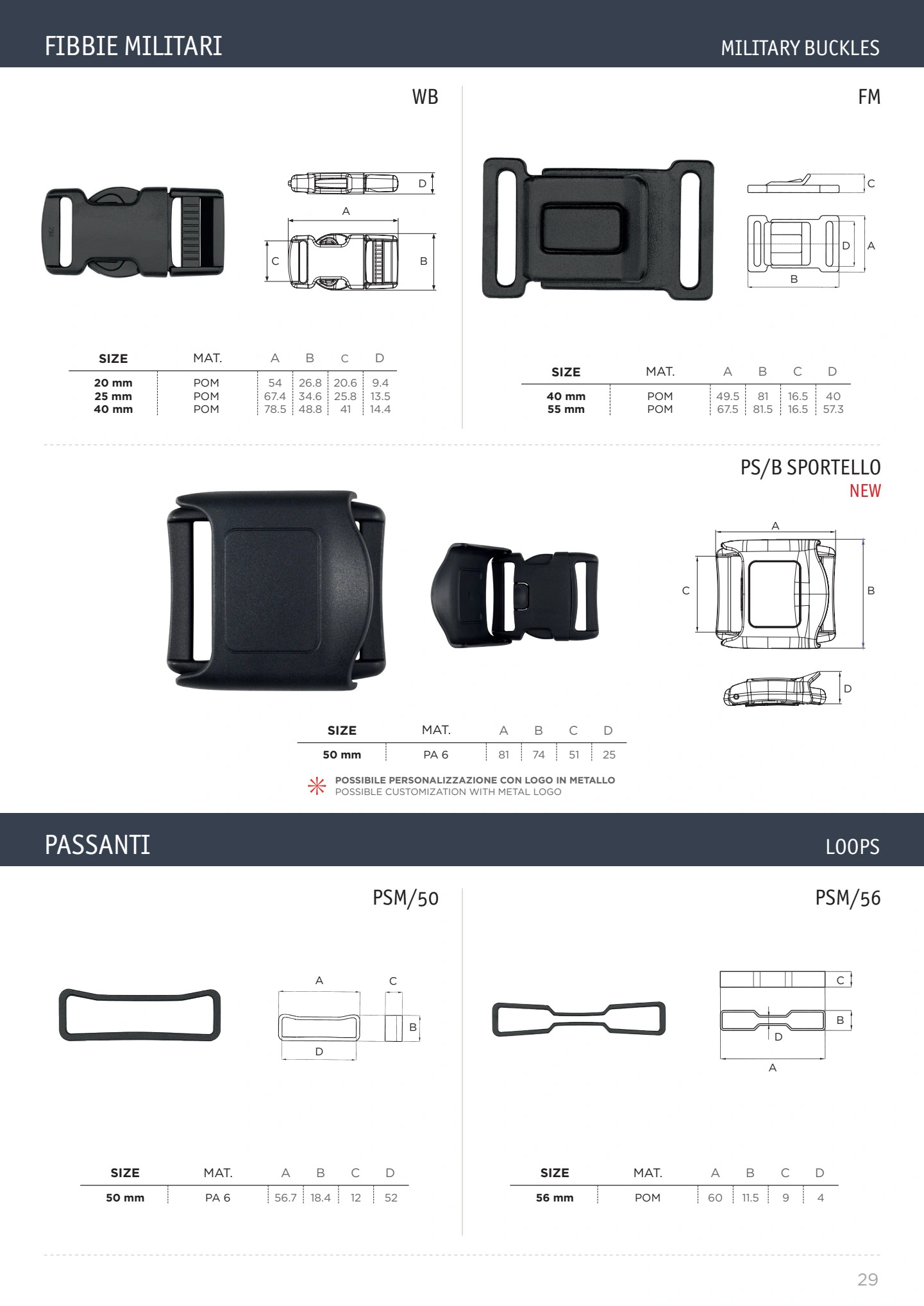

The drawing gives A = 81, B = 74, C = 51 and D = 25 mm. The catalogue offers possible customisation with a metal logo; its shape, attachment and production terms require separate agreement. Lettered dimensions refer to this model’s drawing; all numerical dimensions are in mm.
Ordering this model
Specify PS/B SPORTELLO 50 mm, quantity and colour. For a metal logo, include artwork and the required finish; provide the belt thickness to check fit.
Key parameters
- Manufacturer
- Due Emme (2M)
- Model
- PS/B SPORTELLO
- Construction
- Belt buckle with cover
- Catalogue nominal size
- 50 mm
- Material
- PA6
- Customisation
- A metal logo is possible subject to separate agreement.
- Colour / configuration
- Confirm the manufacturer palette code for the specified material and order.
Verified specifications
- Drawing dimensions PS/B SPORTELLO 50 mm
- A = 81 mm; B = 74 mm; C = 51 mm; D = 25 mm
- General 2M palette for selection enquiries
- 20 — Black; 23 — White; 14 — Grey; 26 — Yellow; 37 — Orange; 24 — Red; 30 — Royal; 28 — Blue; 380M — Metallic Grey; 14WO — Wolf Grey; 47ME — Sand Beige; 4792 — Sand Brown; 47TN — Tan; 4719 — Coyote; 47BR — Coyote Brown; 36ME — Nato Green; 360G — Olive Green; 36SA — Green Sa. General manufacturer palette; confirm whether the selected colour and material can be supplied for this model. An I.R. marking in the palette does not certify a particular batch.
Technical documents and drawings
Applications and compatibility
- Equipment belt fastenings, with an optional metal logo subject to agreement.
- The drawing gives A = 81, B = 74, C = 51 and D = 25 mm. The catalogue offers possible customisation with a metal logo; its shape, attachment and production terms require separate agreement.
