Due Emme (2M) REVO 16–50 mm PA6 Side-Release Buckle
BUCKLES
SKU · REVO
About this item
REVO is a Due Emme nylon side-release buckle series for belts, backpacks and technical equipment. The 2026 catalogue lists PA6 and six nominal sizes: 16, 20, 25, 30, 40 and 50 mm.
Selecting the assembly
The manufacturer states compatibility between REVO and the 795 series. Check the nominal size and sample assembly when changing models, including the exact component combination and webbing behaviour. Lettered dimensions refer to this model’s drawing; all numerical dimensions are in mm.
Ordering this model
Specify REVO, nominal size, quantity, colour and webbing thickness. If replacing a 795 assembly, include its designation and a sample. DELIM will confirm supply terms for the required configuration.
Key parameters
- Manufacturer
- Due Emme (2M)
- Model
- REVO
- Construction
- Nylon side-release buckle
- Catalogue nominal size
- 16; 20; 25; 30; 40; 50 mm
- Material
- PA6
- Colour / configuration
- Confirm the manufacturer palette code for the specified material and order.
Verified specifications
- Drawing dimensions REVO 16 mm
- A = 22.8 mm; B = 44.5 mm; C = 8 mm; D = 16.8 mm
- Drawing dimensions REVO 20 mm
- A = 27.6 mm; B = 55.1 mm; C = 10.1 mm; D = 20.8 mm
- Drawing dimensions REVO 25 mm
- A = 35.2 mm; B = 67 mm; C = 12.2 mm; D = 25.8 mm
- Drawing dimensions REVO 30 mm
- A = 38.5 mm; B = 67.5 mm; C = 13 mm; D = 30.8 mm
- Drawing dimensions REVO 40 mm
- A = 48.6 mm; B = 75.3 mm; C = 15.3 mm; D = 40.8 mm
- Drawing dimensions REVO 50 mm
- A = 60 mm; B = 80.2 mm; C = 16.5 mm; D = 50.7 mm
- General 2M palette for selection enquiries
- 20 — Black; 23 — White; 14 — Grey; 26 — Yellow; 37 — Orange; 24 — Red; 30 — Royal; 28 — Blue; 380M — Metallic Grey; 14WO — Wolf Grey; 47ME — Sand Beige; 4792 — Sand Brown; 47TN — Tan; 4719 — Coyote; 47BR — Coyote Brown; 36ME — Nato Green; 360G — Olive Green; 36SA — Green Sa. General manufacturer palette; confirm whether the selected colour and material can be supplied for this model. An I.R. marking in the palette does not certify a particular batch.

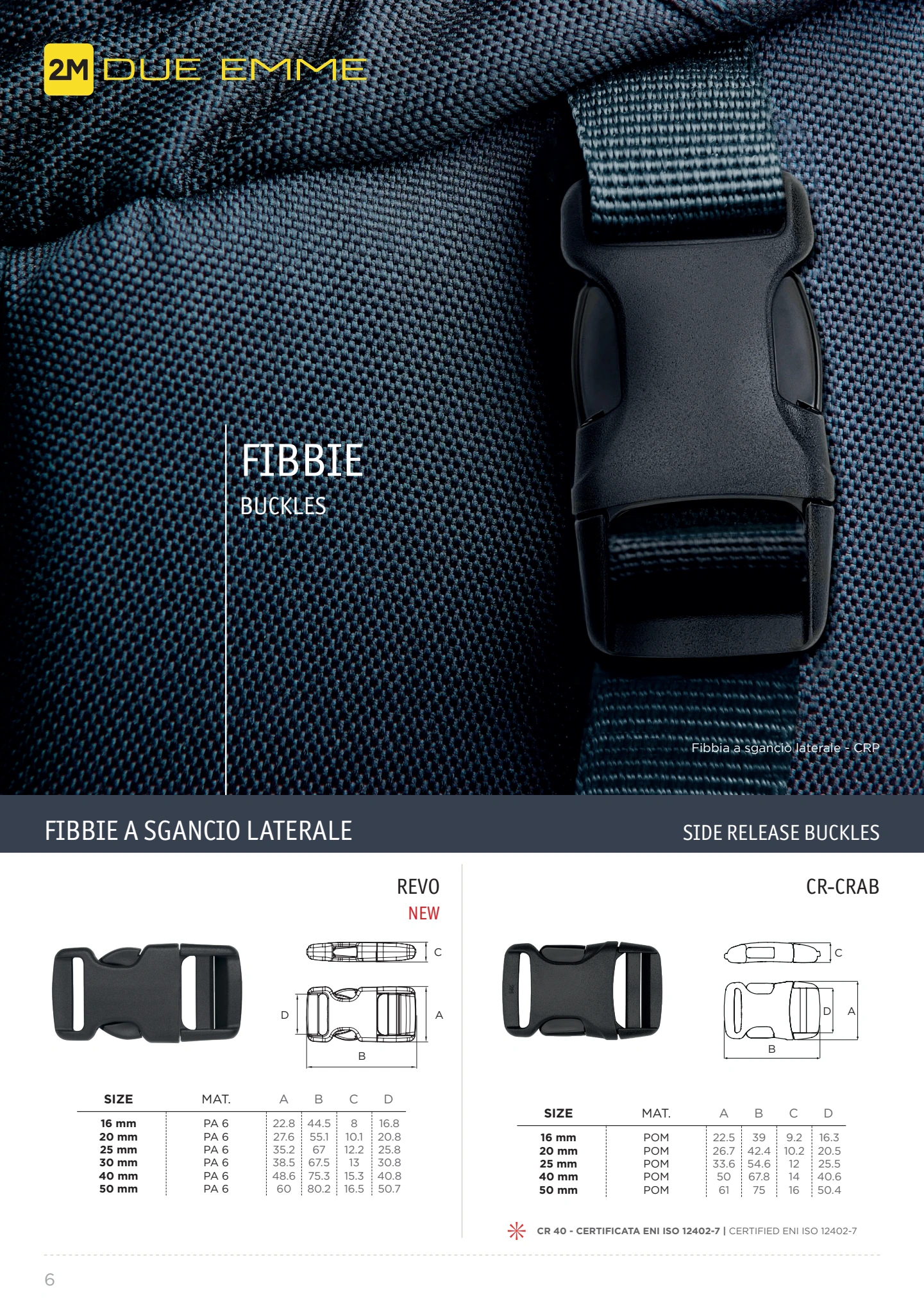

Technical documents and drawings
Applications and compatibility
- Belts, backpacks, technical and outdoor equipment.
- The manufacturer states compatibility between REVO and the 795 series. Check the nominal size and sample assembly when changing models, including the exact component combination and webbing behaviour.
