Due Emme (2M) SMO LARGE 25 mm Swivel Snap Hook
SNAP HOOKS
SKU · SMO LARGE
About this item
SMO LARGE is a nominal 25 mm Due Emme swivel snap hook with a PA6 body and a stainless-steel INOX spring. Its manufacturer-described hookless mechanism supports smooth use with thin metal half-rings.
Selecting the assembly
Check the 25 mm webbing and the section, shape and movement of the mating half-ring. The drawing gives A = 36.1, B = 70.5, C = 16 and D = 26.7 mm; confirm fit using the actual component pair. Lettered dimensions refer to this model’s drawing; all numerical dimensions are in mm.
Ordering this model
Specify SMO LARGE 25 mm, quantity and colour. Include the half-ring dimensions or a sample and the requirements for the workwear or equipment assembly.
Key parameters
- Manufacturer
- Due Emme (2M)
- Model
- SMO LARGE
- Construction
- Swivel snap hook with stainless-steel spring
- Catalogue nominal size
- 25 mm
- Material
- PA6+INOX
- Colour / configuration
- Confirm the manufacturer palette code for the specified material and order.
Verified specifications
- Drawing dimensions SMO LARGE 25 mm
- A = 36.1 mm; B = 70.5 mm; C = 16 mm; D = 26.7 mm
- General 2M palette for selection enquiries
- 20 — Black; 23 — White; 14 — Grey; 26 — Yellow; 37 — Orange; 24 — Red; 30 — Royal; 28 — Blue; 380M — Metallic Grey; 14WO — Wolf Grey; 47ME — Sand Beige; 4792 — Sand Brown; 47TN — Tan; 4719 — Coyote; 47BR — Coyote Brown; 36ME — Nato Green; 360G — Olive Green; 36SA — Green Sa. General manufacturer palette; confirm whether the selected colour and material can be supplied for this model. An I.R. marking in the palette does not certify a particular batch.

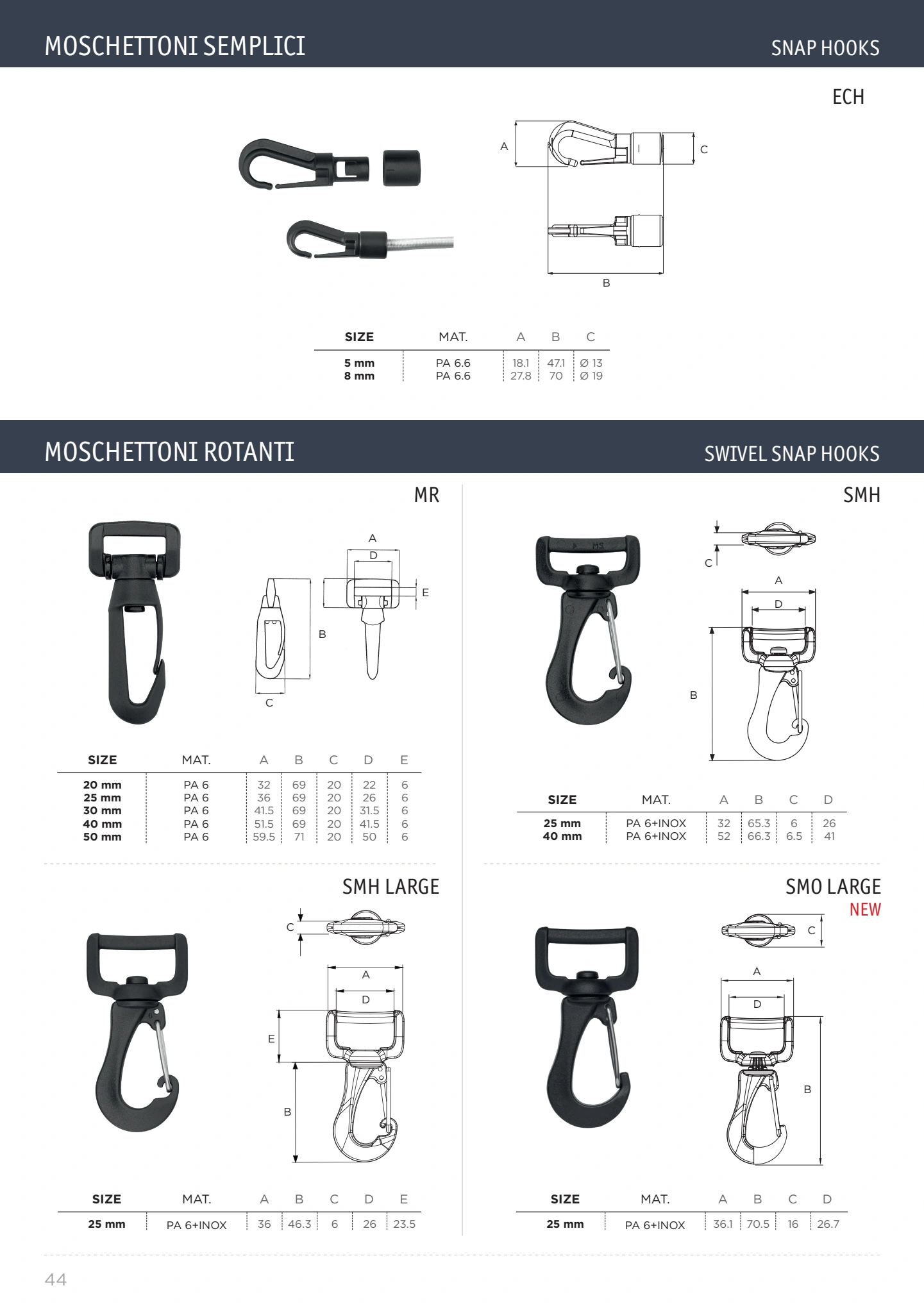

Technical documents and drawings
Applications and compatibility
- Swivel webbing attachments for workwear and equipment.
- Assemblies with thin metal half-rings, subject to fit checks.
- Check the 25 mm webbing and the section, shape and movement of the mating half-ring. The drawing gives A = 36.1, B = 70.5, C = 16 and D = 26.7 mm; confirm fit using the actual component pair.
