Due Emme (2M) TRG 20/25/40/50 mm POM Webbing Adjuster
REGULATION SYSTEMS
SKU · TRG
About this item
TRG is a Due Emme webbing adjuster with a finger-grip shape for adjustment. The manufacturer lists four nominal sizes, 20, 25, 40 and 50 mm, in POM. Each version has its own A–D dimensions in the catalogue.
Selecting the assembly
The PDF catalogue marks TRG COMING SOON, while a current manufacturer product page already lists the model. Confirm order terms and lead time for the required size. Test threading, adjustment and retention with the actual webbing. Lettered dimensions refer to this model’s drawing; all numerical dimensions are in mm.
Ordering this model
Specify TRG, the 20/25/40/50 mm size, quantity, colour and webbing thickness. If replacing another adjuster, include its sample or an assembly drawing.
Key parameters
- Manufacturer
- Due Emme (2M)
- Model
- TRG
- Construction
- Webbing ladderlock adjuster
- Catalogue nominal size
- 20; 25; 40; 50 mm
- Material
- POM
- Colour / configuration
- Confirm the manufacturer palette code for the specified material and order.
Verified specifications
- Drawing dimensions TRG 20 mm
- A = 28.2 mm; B = 33 mm; C = 11.6 mm; D = 20.7 mm
- Drawing dimensions TRG 25 mm
- A = 33.2 mm; B = 33.6 mm; C = 11.4 mm; D = 25.6 mm
- Drawing dimensions TRG 40 mm
- A = 49.2 mm; B = 38.3 mm; C = 12.5 mm; D = 40.8 mm
- Drawing dimensions TRG 50 mm
- A = 61.5 mm; B = 42.1 mm; C = 14.7 mm; D = 50.8 mm
- General 2M palette for selection enquiries
- 20 — Black; 23 — White; 14 — Grey; 26 — Yellow; 37 — Orange; 24 — Red; 30 — Royal; 28 — Blue; 380M — Metallic Grey; 14WO — Wolf Grey; 47ME — Sand Beige; 4792 — Sand Brown; 47TN — Tan; 4719 — Coyote; 47BR — Coyote Brown; 36ME — Nato Green; 360G — Olive Green; 36SA — Green Sa. General manufacturer palette; confirm whether the selected colour and material can be supplied for this model. An I.R. marking in the palette does not certify a particular batch.

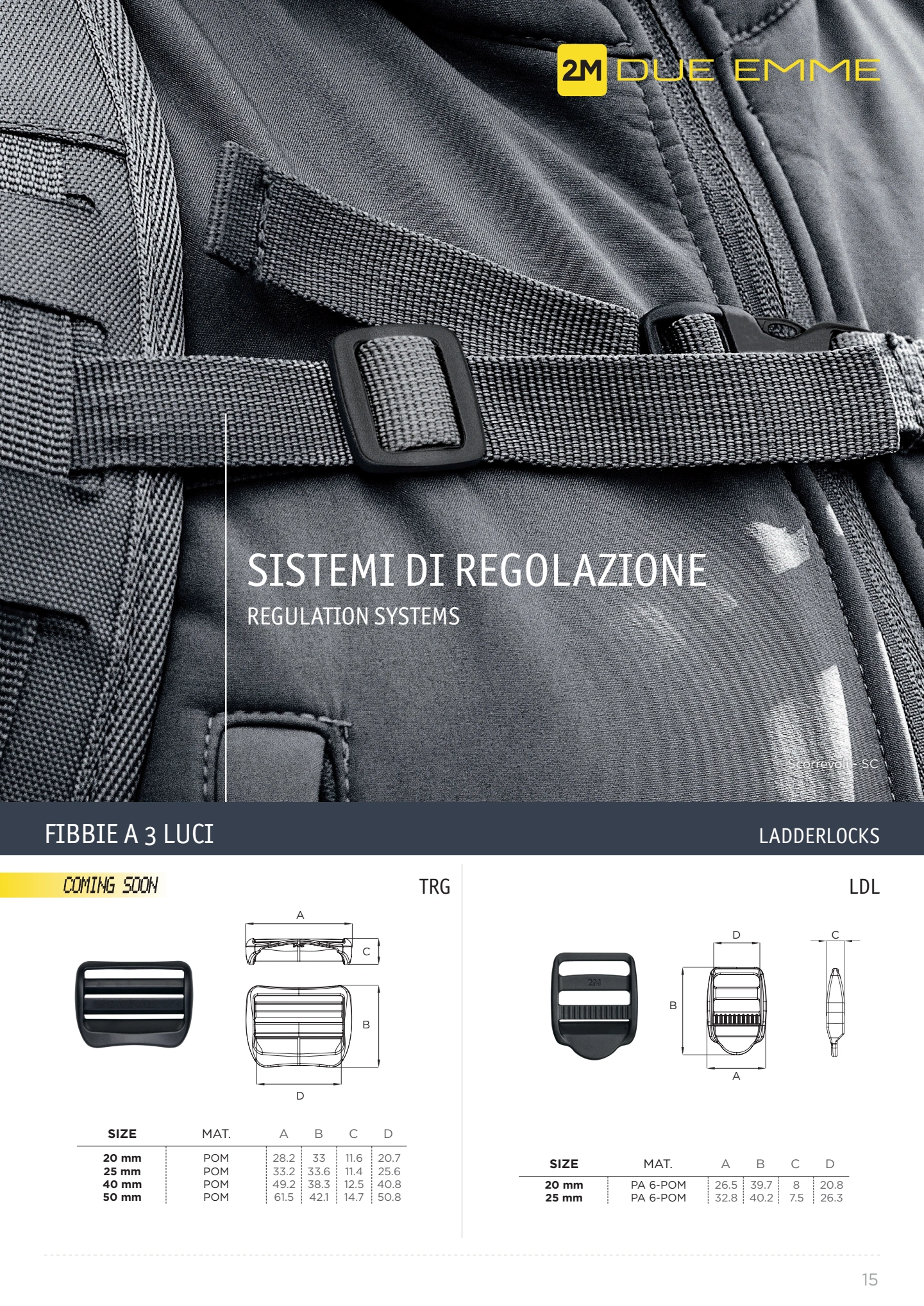

Technical documents and drawings
Applications and compatibility
- Webbing length adjustment in straps, belts and equipment.
- The PDF catalogue marks TRG COMING SOON, while a current manufacturer product page already lists the model. Confirm order terms and lead time for the required size. Test threading, adjustment and retention with the actual webbing.
